Choose an LEF to Suit Your Budget and Your Business
 |  |  | |
| VersaUV LEF-12i | VersaUV LEF2-200 | VersaUV LEF2-300 | |
| Maximum Print Area | 12″ x 11″ | 20″ x 13″ | 30”x 13” |
| Ink Configuration Options | CMYK + Gloss + White | CMYK + Gloss + White CMYK + Primer + White CMYK + White + White | CMYK + Clear (gloss) + Clear (gloss)+ White CMYK + Clear (gloss) + White+ Primer |
| Included RIP Software | Roland DG VersaWorks 6 | Roland DG VersaWorks 6 | Roland DG VersaWorks 6 |
| Accessories | BOFA air filtration system (optional) RotaPrint cylindrical printing attachment (optional) | ||
Promotional Items
With the ability to print CMYK, White and Gloss inks directly around the curves and contours of three-dimensional objects, the LEF-12i is ideally suited for personalizing pens, golf balls, key chains and other promotional items. Variable data printing allows you to individualize each item with names, photos and other custom design elements.
Electronic Devices
Low-heat LED curing systems make the LEF-12i ideal for printing on sensitive electronic devices, including tablets and smartphones. High-opacity White ink produces bright, crisp white text and graphics, and can also be printed as an undercoat to enhance full-color graphics on clear acrylics and darker plastics.
Giftware
With the LEF-12i, you can print directly on gift items ranging from jewelry and accessories to photo frames, wedding favors, dishware and even fabric items such as leather wallets and purses. Add interesting patterns and textures to your designs with layers of Gloss ink in matte or gloss.
Awards
The LEF-12i is the perfect additions to awards and recognition businesses, allowing these shops to add full-color graphics to engraved items for high-impact results. White ink allows you to print on clear acrylic awards as well as dark-colored plaques. Gloss ink adds elegant embossing and varnishing effects for a premium presentation.
Consumer and Industrial Products
For product designers, entrepreneurs and marketing professionals, the LEF-12i customizes a wide variety of products from toys and sports items to cosmetic cases and control panels. Variable data printing allows you to mark each product or part with individual serial and lot numbers.
Small signage
With the LEF-12i, you can create ADA signs as well as specialized signs for car doors, windows and interior spaces. Print directly on wood and other specialty materials for a truly unique look.

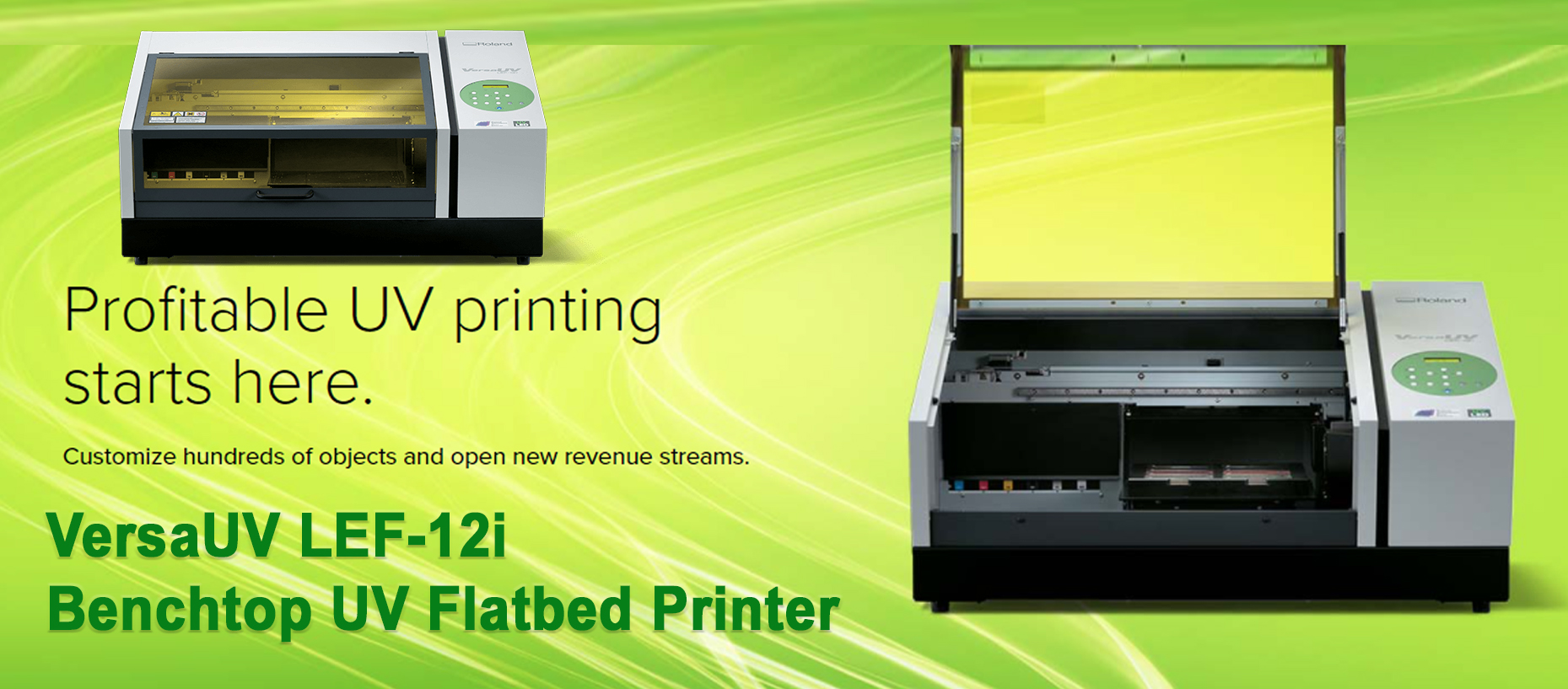

VersaUV LEF-12i Specification
| Model | VersaUV LEF-12i | |
|---|---|---|
| Printing method | Piezo ink-jet method | |
| Acceptable media | Width | Maximum 12.2 inches (310mm) |
| Length | Maximum 13.2 inches (335mm) | |
| Thickness | Maximum 3.94 inches (100mm) | |
| Weight | Maximum 11 lbs (5Kg) | |
| Printing Width | Maximum 12 inches (305mm) | |
| Printing Length | Maximum 11 inches (280mm) | |
| Ink cartridges | Type | ECO-UV 220ml cartridge |
| Colors | Six colors CMYK, White, Gloss | |
| Ink-Curing Unit | Built-in UV-LED lamp | |
| Print Resolution (dpi) | Maximum 1440 dpi | |
| Distance accuracy (when printing) *1 | Error of less than ±0.3% distance ±0.3mm, whichever is greater | |
| Connectivity | Ethernet (10Base-T/100Base-TX, automatic switching) | |
| Power-saving function | Automatic sleep feature | |
| Power requirements | AC 100 to 240V ±10%, 1.8A (50/60Hz) | |
| Power Consumption | During operation | Approximately 149W |
| During standby | Approximately 13W | |
| Acoustic noise level | During operation | 60 dB (A) or less |
| During standby | 49 dB (A) or less | |
| Dimensions | Width | 39.3 inches (998 mm) |
| Depth | 34.2 inches (867 mm) | |
| Height | 21.5 inches (546mm) | |
| Weight | 187.4 lb (85kg) | |
| Environment | During Operation *2 | Temperature:20 to 32°C or 68 to 90°F (22° or 72°F or higher is recommended) Humidity: 20 to 80% RH (no condensation) |
| Not operating | Temperature: 5 to 40°C or 41 to 104°F Humidity: 20 to 80% RH (no condensation) | |
*2 Operating environment
| Roland VersaWorks 6 System Requirements | ||
| Operating system | Windows® 10 (32/64-bit) | |
| Windows® 8.1 (32/64-bit) | ||
| Windows® 7 Professional / Ultimate (32/64-bit) | ||
| CPU | Intel® Core™2 Duo, 2.0 GHz or faster recommended | |
| RAM | 2 GB or more recommended | |
| Video card and monitor | A resolution of 1,280 x 1,024 or more recommended | |
| Free hard-disk space | 40 GB or more recommended | |
| Hard-disk file system | NTFS format | |
| Optical drive | DVD-ROM drive | |
| Other requirements | Ethernet or USB port Internet connection and web browser to use Roland@NET | |
Please note: Considering that you will be using software such as Illustrator, we recommend that you use as high performance computer as possible to reduce RIP processing time.
We also recommend using a hard disk that has large enough capacity, as print files are often tens of GB in size (or larger) when data is high resolution.
* Roland VersaWorks 6 is a 32-bit application, which runs on 64-bit Windows® with WoW64 (Windows 32-bit on Windows 64-bit).
