FOISON VINYL CUTTER
FEATURES- Adopts high-precision steel axes, can prevent slipping while cutting 3m materials
- Ultra pressure, capable of punching thick engineering materials
- 10 silica gel buttons, easy-to-use and durable 4*8 high-resolution
- LCD backlight display suitable for different work surroundings
- Stable processing, low noise operation yet without zigzag while cutting
- User-friendly Design allows adjusting the cutting force and working speed

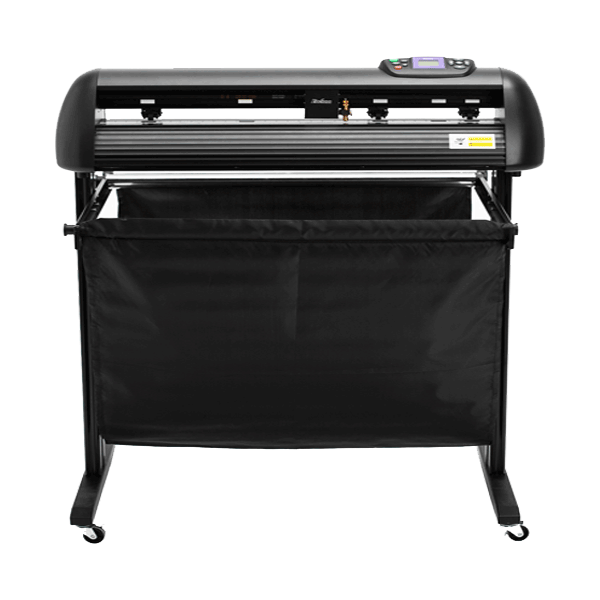

- Delicate, high strength aluminum alloy body C24 Vinyl Cutter
- Stand (Optional)
- USB interface to connection computer also support hot-plug
- Support Windows xp/vista/2008/ win7 32 bits/64 bits Mac system

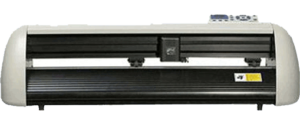

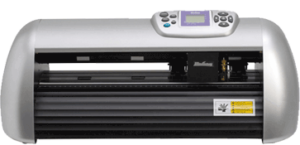

C-12
$599.00
C-24
$899.00
C48
$1,295.00
Applications
| Model | C12 | C24 | C48 |
| Acceptable Media Width | 415mm | 720mm | 1300mm |
| Max. Cutting Width | 305mm/12Inch | 620mm / 24Inch | 1200mm/48Inch |
| Operating system | Windows2000/XP/2003/win7/ 2003 x32/win7 x64 / Mac OSX10.2.8 & above version | ||
| Interface | RS232C, USB | ||
| Control Panel | 10Silica gel buttons | ||
| Driver | Digital DC, Step Motor, Micro-step Driver | ||
| Display | 4*8 High-Resolution LCD | ||
| Drawing Instruction | HP-GL, DMPL | ||
| Max. Cutting Speed | 600mm/s | ||
| Max. Cutting Thickness | 1mm | ||
| Pressure |
50g~800g Adjustable |
||
| Mechanical Precision | 0.025mm | ||
| Repeat Accuracy | < ±0.1mm | ||
| Power Supply | AC90~240V/50Hz~60Hz | ||
| Positioning Mode | Bounded System, Random Original Point Setting | ||
| Work Mode | Roller | ||
| Operating Environment | Temperature:+5℃-35℃,Relative Humidity:30%-70% | ||
| Support Mode | Desktop | Desktop | Stand |
| Net Weight | 890*265*270mm 12kg | 890*265*270mm 12kg | 1530*265*270mm 32kg |
| Gross Weight | 1015*380*395mm 16kg | 1015*380*395mm16kg | 1595*380*395mm 36.5kg |
